Recent coverage in networking forums and vendor updates has drawn fresh attention to BPDU Guard amid reports of persistent Layer 2 disruptions in enterprise setups. Administrators note a surge in incidents where unauthorized devices trigger spanning tree recalculations, often during hardware refreshes or remote expansions. BPDU Guard emerges in these discussions as a frontline defense, shutting down ports that receive unexpected Bridge Protocol Data Units to block topology shifts. Networks handling high user density face elevated risks from misplugged switches or virtualized extensions sending rogue BPDUs. Operators report that without such measures, broadcast storms cascade quickly, overwhelming switches and halting traffic. This mechanism ties directly into preventing network loops by enforcing strict boundaries on STP participation. Coverage highlights how overlooked edge ports become entry points for instability, prompting renewed configuration checks across Cisco and Juniper deployments. The feature’s role in maintaining root bridge stability underscores its place in modern loop prevention strategies.
Bridge Protocol Data Units carry spanning tree information across switches, signaling topology details like root ID and path costs. Ports expect these only from designated bridges in the STP domain. BPDU Guard monitors for arrivals on protected interfaces, where end devices like servers should never originate them. Receipt prompts immediate port disablement, halting potential loop formation before broadcasts amplify. Switches log the event clearly, noting the offending bridge MAC for review.
Designers position this at Layer 2 edges to isolate user access from core STP logic. Unauthorized BPDUs often stem from plugged-in hubs or rogue switches claiming superior paths. The guard enforces domain boundaries without altering global calculations. Operators observe that consistent application keeps topologies predictable amid daily plug-ins.

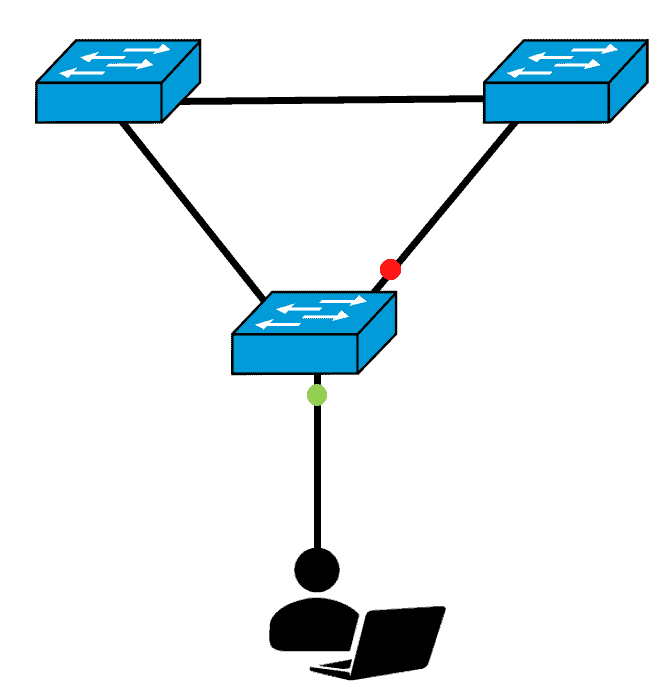

Portfast skips STP listening on edge ports, speeding convergence to forwarding for workstations. BPDU Guard pairs with it to catch any BPDU arrivals post-transition. A connected printer rarely sends one, but a hidden switch does, triggering shutdown. This combo prevents loops from silent uplinks turning active.
Admins enable both globally for scale, applying to all fast-start interfaces. Logs show err-disable states with timestamps, aiding quick audits. Without this, Portfast alone risks loops if users bridge connections unexpectedly. The mechanism buys time for intervention, preserving upstream stability.
Detection flips the port to err-disabled, stopping all forwarding instantly. Switches append %SPANTREE-2-BLOCK_BPDUGUARD messages to syslog, identifying the port and sender. Manual reenable follows via shutdown/no shutdown, or auto-recovery kicks in after set intervals. This process contains threats without network-wide reconvergence.
Root causes trace to unmanaged devices mimicking STP participants. Guards activate per-port or default-wide, fitting varied topologies. Operators verify via show commands, confirming status across VLANs. The abrupt halt underscores its reactive precision over preventive filtering.
Syslog entries pinpoint BPDU sources by bridge ID, flagging anomalies like low-priority claims. Console outputs mirror, aiding on-site response during outages. Counters in show spanning-tree summary track guard actions, revealing patterns in user behavior. Persistent triggers signal cabling issues or policy gaps.
Integration with SNMP traps notifies central systems for automated ticketing. Review periods expose repeat offenders, prompting physical locks or VLAN tweaks. The detail level supports forensic analysis post-incident, linking shutdowns to specific hardware.
Manual recovery demands CLI access, typing interface shutdown then no shutdown after clearing culprits. Automated paths use errdisable recovery cause bpduguard with timers from 30 seconds up. Switches attempt reenablement, retesting for BPDUs before full operation.
Global settings apply uniformly, easing management in stacks. Operators tune intervals based on traffic tolerance, balancing uptime against risks. Failed recoveries log repeats, enforcing repeated isolation until fixed. This flexibility suits dynamic environments like campuses.
Rogue switches advertise lower bridge IDs, pulling root designation toward edges. BPDU Guard spots their packets on access ports, disabling before reconvergence starts. Loops form if they bridge redundant paths undetected. Recent deployments note this in hybrid clouds where VMs mimic hardware.
Attackers or accidents introduce these via open jacks. Guards maintain core stability, forcing manual vetting. Observers track via port histories, correlating with access logs. The defense holds against both intent and error equally.
Loops multiply broadcasts exponentially, flooding MAC tables and CPUs. BPDU Guard preempts by isolating the entry point early. Storms halt at the port boundary, sparing aggregation layers. Switches recover faster without full topology flushes.
Impacts hit VoIP and real-time apps hardest, dropping latency guarantees. Guards prove vital in dense wiring closets. Metrics show CPU spikes dropping post-enablement in audited nets. Containment scales with port counts.
Unexpected BPDUs rewrite paths, overloading links with suboptimal routes. Guard enforcement keeps designated roots intact, avoiding blackholing. Changes propagate silently until loops emerge. Operators monitor via consistent root IDs across shows.
Virtual overlays complicate detection, blending physical signals. The feature enforces physical edges rigorously. Stability metrics improve markedly in guarded segments. Disruptions trace back to single ports reliably.
Access layers define STP limits, connecting hosts not bridges. BPDU Guard polices this line, rejecting crossovers. Hubs evade but rarely loop alone; switches don’t. Boundaries hold during expansions.
Designs layer it with trunk restrictions for completeness. Enforcement prevents cascade failures from periphery. Audits confirm zero unauthorized participations in protected zones.
VMware or hypervisors send BPDUs from vSwitches, mimicking rogues. Guards disable host uplinks, stranding clusters. Configurations exempt trunks but watch overlays. Loops arise from misvirtualized redundancies.
Admins segment vMotion paths outside STP domains. Challenges persist in converged fabrics. Solutions blend guard with filters judiciously. Stability demands tuned exemptions.
Global activation uses spanning-tree portfast bpduguard default in config mode. All Portfast ports inherit protection automatically. Verification runs show running-config | include bpduguard. Applies to IOS and Nexus lines uniformly.
Stacks propagate consistently, easing campus deploys. Operators script for bulk pushes. Defaults align with best practices on user ports.
Per-port commands enter interface then spanning-tree bpduguard enable. Pairs with switchport mode access typically. Show interfaces status err-disabled lists impacts. Fine for trunks needing exceptions.
Legacy Catalyst varies slightly in syntax, but logic holds. Targeted setup suits mixed roles. Quick CLI deploys prevent oversights.
Junos configures bpdu-block on interfaces, dropping incompatible BPDUs. EX series logs drops without full shutdowns. set protocols rstp interface ge-0/0/0 bpdu-block-on-receive commits changes. Differs in granularity from Cisco.
Documentation stresses ELS styles for modern chassis. Operators adapt from Cisco habits carefully. Protection fits MSTP topologies well.
Cisco errdisable recovery cause bpduguard sets auto-reenable. Interval 300 seconds balances usability and security. Show errdisable detect confirms. Prevents manual hunts in large fabrics.
Timers extend to 24 hours for strict policies. Logs track cycles, flagging chronic issues. Tuning reduces downtime metrics significantly.
Mixed Cisco-Juniper nets demand consistent behaviors. Cisco disables aggressively; Juniper blocks selectively. Tests verify loop resistance across boundaries. Migrations map configs precisely.
Standards underpin but implementations diverge. Operators document hybrids thoroughly. Reliability holds in observed deployments.
%SPANTREE-2-BLOCK_BPDUGUARD entries name ports and bridges. Cross-reference with MAC tables for sources. Frequency indicates patterns like repeat plugs. Debug spanning-tree events adds granularity.
False positives rare but check Portfast overlaps. Interpretation speeds root cause isolation. Teams standardize log reviews weekly.
Shutdown no shutdown clears errdisable post-fix. Global recovery automates for volume. Verify no BPDUs persist via packet captures. Document each for audits.
Procedures train juniors effectively. Downtime logs quantify improvements. Consistency builds trust in automation.
Spiceworks threads detail core switches dropping edges on DHCP grabs. Recovery intervals resolved repeats. Reddit posts on cleaning errdisabled lists emphasize cause hunts. Real fixes involved cabling audits.
Deployments in schools note user mischief. Lessons reinforce port policies. Outcomes show uptime gains post-implementation.
SNMP traps feed to PRTG or SolarWinds for alerts. Counters via show track utilizations. Syslog servers parse for trends. Integration spots anomalies pre-storm.
Dashboards visualize guard actions over time. Teams correlate with traffic baselines. Proactive tweaks emerge from data.
Layer with Root Guard on trunks, Loop Guard on blocks. Storm control caps broadcasts further. UDLD detects unidirectionals. Strategies stack for resilience.
Enterprise guides recommend combos. Effectiveness multiplies in data centers. Gaps remain in pure L2 hubs.
Public records establish BPDU Guard as a proven edge protector, consistently disabling rogue influences in documented deployments. Configurations vary by vendor, with Cisco’s shutdowns contrasting Juniper’s drops, yet both enforce STP isolation effectively. Incidents traced to unguarded ports reveal loops’ speed, overwhelming resources before manual halts. Auto-recovery and logging fill gaps in response times, but persistent triggers point to deeper policy needs.
Unresolved questions linger around virtualized swarms, where vSwitches blur physical lines. Hybrids demand finer exemptions without weakening cores. Forum cases show cabling as frequent culprits, yet no universal fix emerges beyond vigilance. Implications extend to zero-trust fabrics, where guards layer into software-defined overlays.
Forward, integrations with AI-driven anomaly detection could preempt plugs, analyzing patterns pre-BPDU. Standards evolve slowly, leaving admins to blend features amid cloud shifts. Deployments stabilize known risks, but scaling to IoT densities tests limits. Networks remain vulnerable at edges until automation matures.
